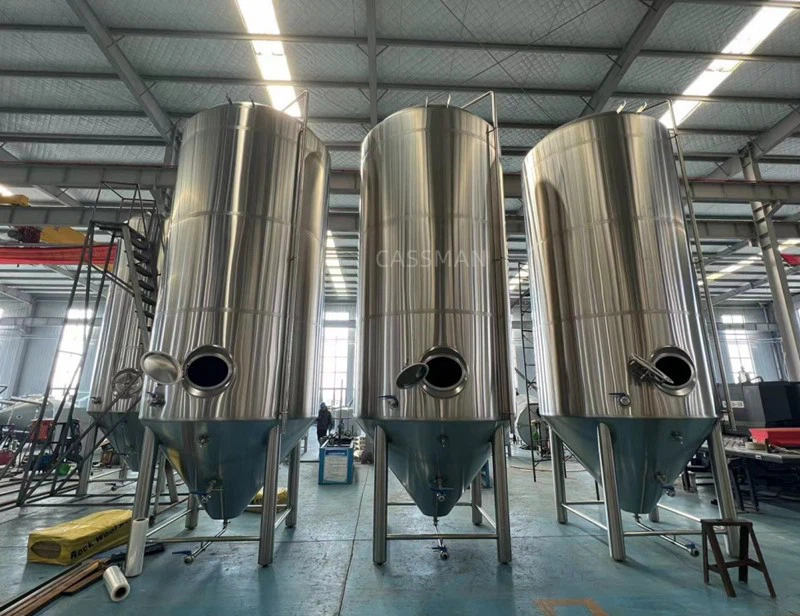

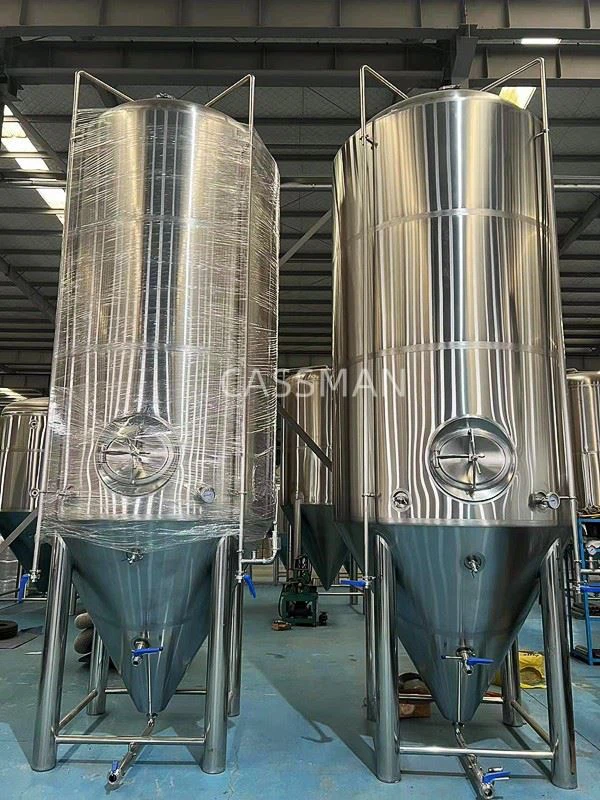

60 Bbl Double Wall Conical Fermenter

•Diameter 2200mm*Height 5000mm

• Test pressure 2 bar, working pressure 1.5 bar

• 4 stainless steel legs with leveling pads

•Thickness: SUS 304, Interior shell: TH=3mm; Exterior shell: TH=2mm

• Interior and exterior finish sanitary polish

• 60 /72/75degree cone bottom, with 25% head space

• Racking port and discharge port with butterfly valve and fittings

• Side manway door or top manhole

• Dry hop port-Multiple styles are available

• Dual zone dimple cooling jacket with glycol inlet and outlet

• Polyurethane insulation for cooling jacket on side and bottom

• CIP arm and spray ball

• Rotating tank racking arm and carbonation stone

• Vacuum & pressure relief valve, Pressure gauge, Thermometer and Sample valve included.

• Temperature controller & solenoid valve & level gauge as a optional

Features:

1. Material: The fermentation tank is made from high-grade stainless steel, which provides better corrosion resistance and longevity in use. All material used in the manufacturing process is food-grade and meets strict hygienic standards.

2. Design: The tank is designed to hold a maximum of 30% volume, which allows ample room for the beer to ferment with enough headspace. Moreover, the tank design and conical shape allow for efficient yeast separation and easy cleaning.

3. Insulation: The tank is designed with double-wall insulation, which maintains a stable temperature inside the tank, preventing any temperature fluctuations that might damage the beer.

4. Pressure: The tank is rated to handle a maximum pressure of 3Bar, ensuring that the interior and exterior surfaces of the tank remain safe.

5. Carbonation: The fermentation tank has a carbonation stone that ensures sufficient levels of carbonation in the beer.

6. Temperature Control: The fermentation tanks are equipped with digital temperature controllers that allow for precise temperature control, ensuring that the beer ferments at optimal temperatures.

7. Sterilization: The tank comes with a cleaning ball and CIP system to enable effective and efficient sterilization of the fermentation tank.

Applications:

Our 60BBL beer fermentation tanks are extensively used by large scale commercial breweries to produce various types of beer. These tanks are suitable for the following types of beer:

1. Ales.

2. Lagers.

3. Stouts and porters.

4. Belgian and wheat beers.

Benefits:

1. High-quality beer: Our fermentation tanks are designed to provide optimal conditions for the fermentation of beer, resulting in high-quality beer that meets customers’ expectations.

2. Saves time and effort: The tank design and CIP system make cleaning and sterilization easy, saving brewers valuable time and effort.

3. Durability and longevity: The fermentation tank is made from high-quality stainless steel, ensuring that it lasts long and can handle rigorous use.

4. Cost-effective: Our fermentation tanks are cost-effective when compared to other alternatives, and provide excellent value for money.

Conclusion:

Our 60BBL beer fermentation tanks are a must-have for commercial breweries looking to produce high-quality beer. With their high-grade stainless steel construction, optimal design, temperature control, and carbonation, they are the perfect tool for brewers looking to achieve optimal fermentation and carbonation in their beer. Our tanks are cost-effective, durable, and provide excellent value for money. Place your order today and start brewing premium quality beer with ease.
