20HL Brewery System
Specifications

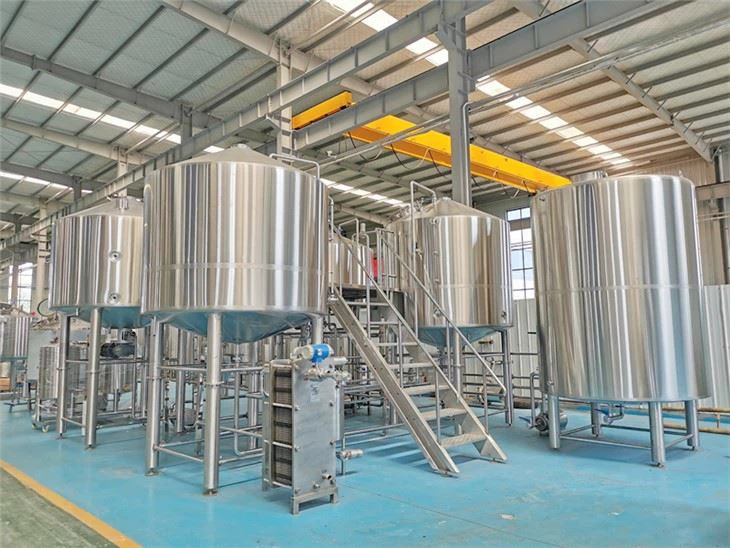

Cassman 20HL brewery system is a very standard design for microbrewery, the brewhouse could be 2,3 or 4 vessels, with steam heated brewing vessel or inner heater of the brewing kettle, the maximum brew length could be 5 batch within 24 hours. The fermenters could be 20HL, 40HL, 60HL or even 80HL. The advantage of this kind of brewery is that the brewing is flexible and the specially designed and customized brewery system can meet the different needs of brew master for brewing batches. Cassman also provide free consultation on beer equipment selection.
20HL Brewery System Configurations
1 | Grain Milling Unit | Rolling Miller | 500~800kg/hr | Double roller |
Power: 1.5Kw | ||||
Noise: 45±3db | ||||
2 | Brewhouse Unit | Mash/Lauter tun | 2000L (total 2500L) | Side mounted grain outdoor with grain chute |
Laser cutting V-wire False Bottom | ||||
Kettle/Whirlpool Tun | 2000L (total 2500L) | Steam heating | ||
Tangential whirlpool inlet | ||||
Sanitary leveling sight glass | ||||
Hot water tank | 2000L (total 2500L) | Sanitary leveling sight glass | ||
Yeast feeder | 30L | Clamp aeration port with ball valve | ||
Heat exchanger | 20M2 (Effective area) | Completely 304 SS Corrugated plates | ||
Wort pump | 5M3x2PCS | ABB, Sanitary SUS304, VFD control | ||
Pipe and fittings | As design | completely SS304, Work Platform is included | ||
3 | Fermentation unit | Fermenter | 4000L (total 5000L) | Dimple cooling jacket on cone and bottom |
Side manway | ||||
Tri clamp CIP ball | ||||
60 degree cone bottom | ||||
Perlick style full sanitary sampling valve | ||||
Carbonation port and level tube for special request | ||||
4 | Filtration unit (optional) | Kieselguhr Filter | 1000L/h | Power: 2.5kw |
Filter Area: 2.4M2 | ||||
SUS304 | ||||
5 | Bright beer tank | Bright beer tank | 4000L (total 5000L) | Dimple cooling jacket on cone and bottom |
Level tube for checking | ||||
Tri clamp CIP ball | ||||
Side manway | ||||
Perlick style full sanitary sampling valve | ||||
Carbonation port with tri clmap carbonation stone | ||||
6 | Glycol Chilling Unit | Glycol Water Tank | 4000L (total 4500L) | Insulated conical top and sloped bottom |
Chiller | 10HPx2PCS | Cooling Capacity: 15400Kcal/8HP | ||
Installed Power: 7.8kw | ||||
Refrigerant: Freon R404A, R410A | ||||
Noise: 70-80db | ||||
Coperland compressor | ||||
PVC or PPR pipe | As designed | Solenoid valves for glycol inlet to tanks are included | ||
Glycol water pump | 2M3x2PCS | Sanitary SUS304, VFD control | ||
7 | Control unit | Brewing and fermetation process Controlling | Floor type | PLC control with touch screen for special |
PC or mobile remote control for special request | ||||
8 | CIP | Caustic Tank | 200L | Electric heating element inside, With bimetal thermometer |
Sterilization Tank | 200L | H2O2 | ||
Pump | 3M3 | VFD control | ||
9 | Keg cleaning | Double Station Keg Rinser | 40-60kegs/hr | Heating: Electric, Power: 15kw (steam for optional) |
10 | Keg filling | Single Station Keg Filler | 30-40kegs/hr | Input Power: 0.1 kw |
11 | Bottling line | 8 heads | 400-500 bottles/hr | Manual |
12 | Others | Option | Can be Customized | Auger System |
Grain Case | ||||
Grist Hydrator | ||||
Piping flow panel for Brewhouse | ||||
Brewhouse Separate PIDControlle |
2 Vessels-2000L Brewhouse System
3 Vessels-2000L Brewhouse System
4 Vessels-2000L Brewhouse System
40HL Beer Fermenter
4000L Brewery P&ID
Cassman Service
Warranty:
Equipment warranty includes tank warranty, electric parts warranty, auxiliary parts warranty, etc.
1, Cassman provides 3-5 years warranty for the main tank, 1 year warranty for electrical components and auxiliary parts, etc., and lifetime after-sales service.
2, In order to ensure the normal operation of the brewery, we can provide a separate set of spare parts according to the customer's request, customers can replace parts in case of abrasion damage.
Beer equipment model selection:
1, Based on years of experience, Cassman can provide standard models of beer brewing equipment. We have mature experience in brewing technology and equipment design.
2, Cassman can provide custom-made service as per customer's requirement, including customize brewhouse system, fermentation tank, brite beer tank, coffee equipment, whiskey distillation equipment, stainless steel tank, etc.
Brewery design:
Cassman can help to design layout for newly built brewery, and we will supply P&ID drawings, electrical connection diagrams, flow chart, tank drawings, etc. 3D drawings are also available if needs.
