100HL Fermenter

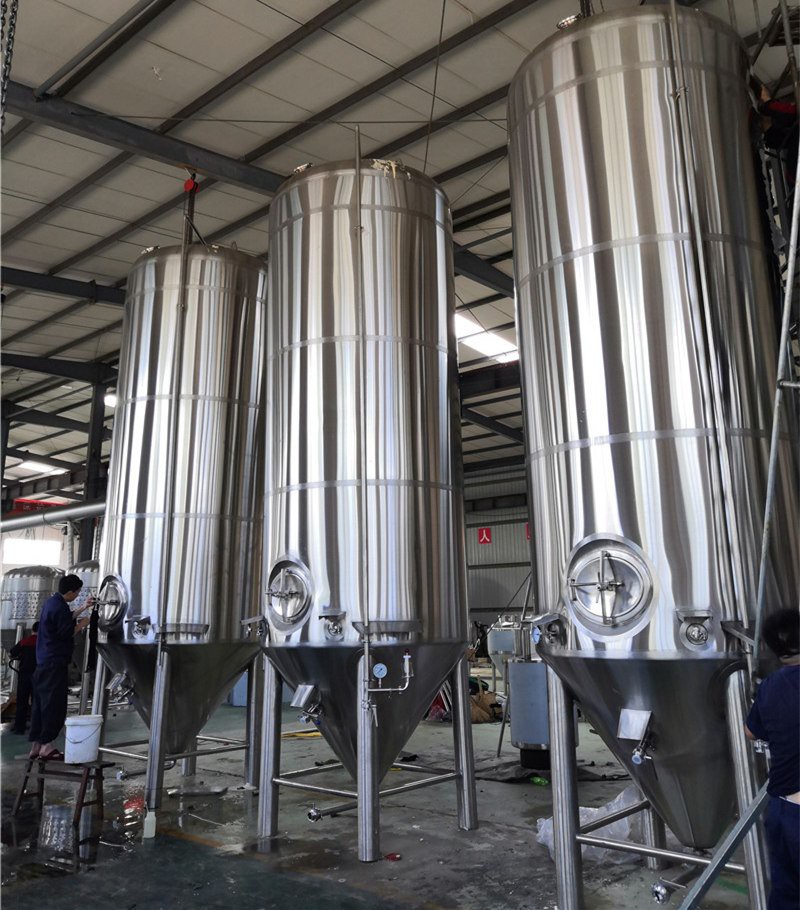

Cassman also expert in middle and large size brewery equipment and fermenters. We will design the 100HL fermenter according to the size of the sea shipping container. Diameter of the tank is 2.2m, height is 5.8meter, so we could put two tanks into 1*40' HQ container. Some brewery they will put the tanks in the outside, so we make a thicker insulation then normal tanks. We also have special design for the Tank Top/Bottom device, which combined the CIP, relief valve etc into a whole system. Working platform on the top of the tank are also available.

Specifications Details

Designed and manufactured according CE-PED.

All material according to SUS304.

Inner Shell: 6mm, SUS304 Stainless Steel.

Outer Shell: 2mm, SUS304 Stainless Steel.

Inner cooling jacket design pressure of 15psi.

25% headspace for the fermenting process.

100mm Thermal Polyurethane Insulation with both cone and shell coolant jackets.

Tank inner side is polished to a 0.4-0.6µm sanitary finish.

Tank outside is 2B Mill or #4 (brushed stainless) stainless steel plate per customer requirement.

Shell and bottom cone cooling jacket for better temperature control.

Pillow Plate on shell body and cone.

Hook outside on the shell for ladders.

Other customization available upon customer request.

Top Mounted or Front Shadowless Manway per customer request.

Vacuum/Pressure combined relief valve.

Racking Arm allows for easy racking arm rotation.

Rotary spray ball within the inner tank for CIP cleaning.

Dedicated 1.5″ Blow Off Arm helps keeps CIP.

Dry Hop Port located on top of the vessel.

Other Port and Fitting customization possible upon request.
