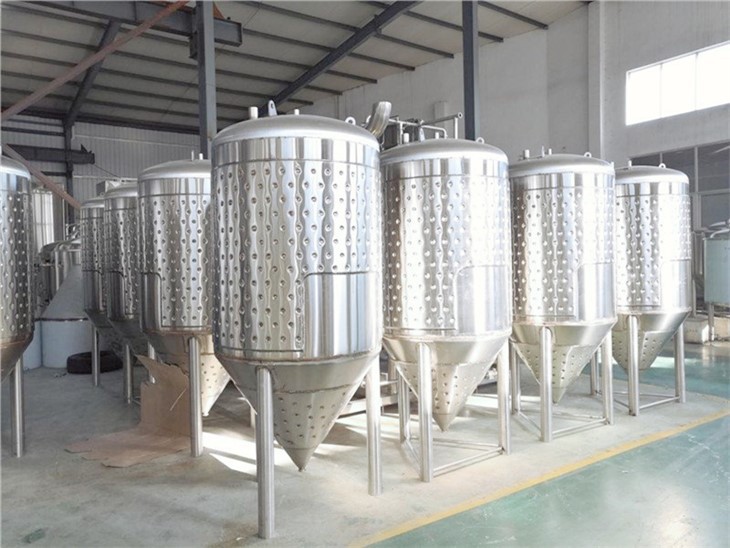

Single Wall Fermenter

Single wall fermenters do not have an exterior shell or insulation, but jacketed is optional. In fact, except for the difference in structure, a single-wall beer fermenter functions exactly the same as a double-wall stainless steel beer fermenter.

Specifications

-Shell: SUS304 full welded TH=3mm

-100% TIG welding with pure argon gas shield

-Interior Finish: Overall polishing to 0.4 μm without dead corner

-Dished head and 60 degree cone bottom

-CIP arm with 360° coverage CIP spraying ball

-Mechanical relief valve 2 bar on CIP arm

-Shockproof pressure gauge on CIP arm

-Rotating racking arm and port on cone with butterfly valve

-Tri clamp discharge arm with butterfly valve

-Thermowell for high accuracy temperature sensor

-Dry hopping port with solid end cap

-Level tube for special request

-Carbonation port and stone for special request

-Dimension: φ900×2137mm (500L)

-Weight: 500kgs
