Single Wall Conical Fermenter

Cassman provide all kinds of beer conical fermenters, the single wall fermenters also means the tank with one layer. In contrast to double-wall beer fermenters, single-wall conical fermenters do not have an exterior shell or insulation, but jacketed is optional. In fact, except for the difference in structure, a single-wall beer fermenter functions exactly the same as a double-wall stainless steel beer fermenter.

Specifications

-Shell: SUS304 full welded TH=3mm

-100% TIG welding with pure argon gas shield

-Interior Finish: Overall polishing to 0.4 μm without dead corner

-Dished head and 60 degree cone bottom

-CIP arm with 360° coverage CIP spraying ball

-Mechanical relief valve 2 bar on CIP arm

-Shockproof pressure gauge on CIP arm

-Rotating racking arm and port on cone with butterfly valve

-Tri clamp discharge arm with butterfly valve

-Thermowell for high accuracy temperature sensor

-Dry hopping port with solid end cap

-Level tube for special request

-Carbonation port and stone for special request

-Dimension: φ900×2137mm (500L)

-Weight: 500kgs

Details of the Tank

All the single wall beer fermenters will be designed with all the necessary ports, such as sample valve, pressure relief valve, dry hopping port, racking arms, carbonation stone, etc. We also accept customized tanks.

Racking arm

Sample valve

Pressure gauge

Carbonation stone

Foot pads

PT100

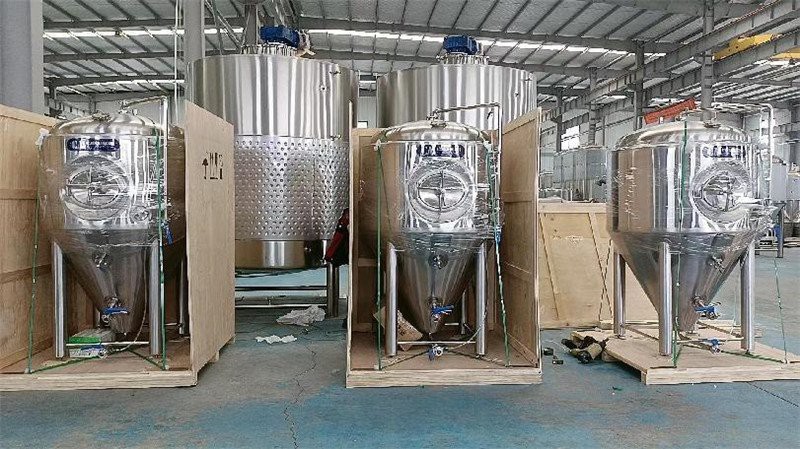

Package of Cassman single wall beer fermenters

1. Wooden case for LCL.

2. Plastic film wrapped and iron frame fixing for FCL.

3. All accessories and spare parts will be packaged with seperated box.

4. After loaded into containers, all equipments will be well fixed to the containers.
