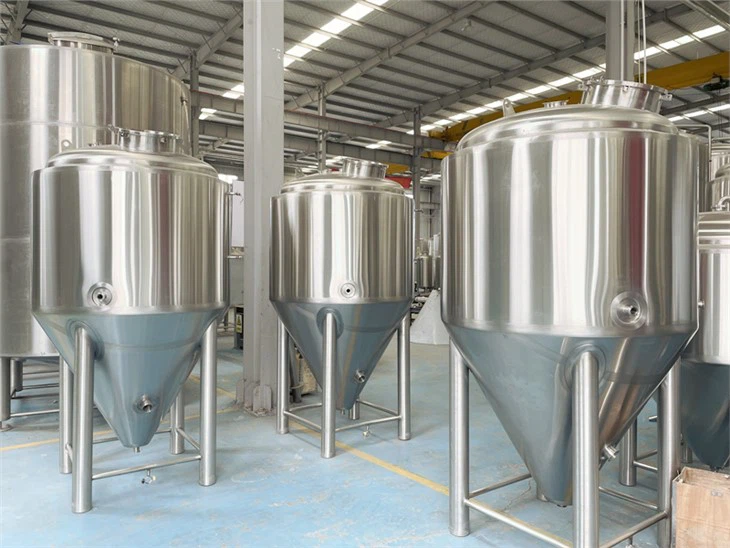

10bbl Unitank

10bbl Unitank is our best selling tank in 2021', we sold 146 tanks in one year. Which are mostly exported to the USA. The tank was designed with all necessary port as a professional beer fermenting tank, they are relief valve, side manway, sample valve, carbonation stone, EPDM seals etc. We accept even one tank as a sample order.

Video

Specifications

• Dimension: φ1360*2363mm

• SUS 304 material insulated tank-80mm.

• Net Capacity 1170L, Gross capacity 1462Liter. (25% head space)

• 100% TIG welding with pure argon gas.

• 0.2 Mpa test pressure. 0.15 Mpa working pressure.

• Dimple cooling jacket, side and cone of the tank. NPT connection.

• Top relief valve (PVRV), Top dry hopping port.

• Sanitary side manway (top for option).

• Sample valve. Pressure valve, Co2 relief valve,

• DIN/TC Rotation racking arm.

• 60 degree cone. carbonation stone,

• Level tube, CIP pipe, Blow Off pipe,

• 24V solenoid valve. Dial Thermometer. RTD sensor.

• Stainless steel 304 butterfly valve. (DIN, Tri-clamp)

• EPDM Gaskets

• Weight: 500kg

Details of the Tank

Racking arm

Sample valve

Pressure gauge

Carbonation stone

Foot pads

PT100

Package of Cassman single wall beer fermenters

We consider all different potential situation in the delivery, so we use every prevention measures to avoid any potential inconvenience or trouble.

1. Wooden case for LCL.

2. Plastic film wrapped and iron frame fixing for FCL.

3. All accessories and spare parts will be packaged with separated box.

4. After loaded into containers, all equipment will be well fixed to the containers.
