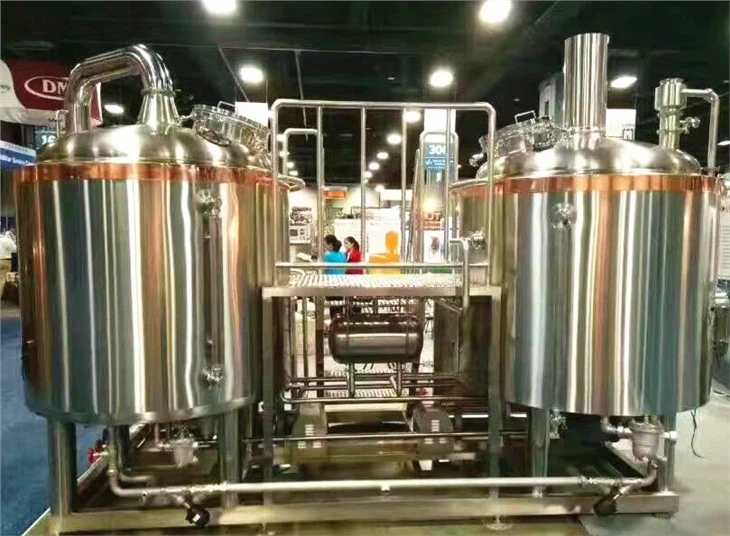

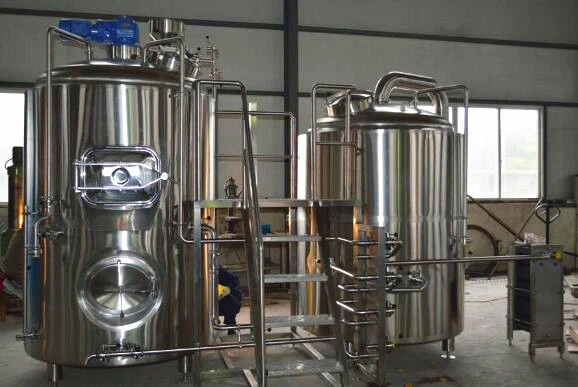

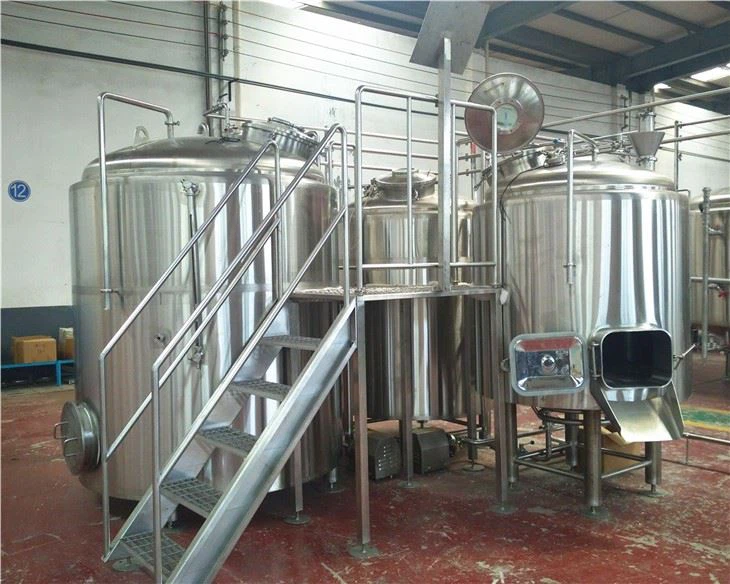

1000L Brewery System

Equipped with the 1000 wort brew machine and several stainless steel fermenters are recommended basic configurations of restaurant/pub breweries. With useful volume 1000 liters per each tank, it is the 1000 Liters output per day. The production capacity of the brewery is 1180 liters of wort per brewing day that is equal approximately 1000 liters of beer after the fermentation process. 1000l brewery system is designed for starters. It is an excellent small to medium brew pub system! 1000l brewery system is easily expandable as demand grows, and is an ideal brewing system for the beginning entrepreneur, restaurateur and artisan. Offering all the advantages of a fast and easy setup, Cassman 1000l brewery system comes with CE Listed Controls that meet the nationally recognized Standards for Safety, which keeps your brewers safe and avoids major hassles at inspection time. Cassman 1000l brewery system allows brewing beer of all styles, such as ales, lager, IPA, stout, cider, etc.

Configuration

1. Malt Milling Unit

Particle adjustable rolling crusher

Flexible or steel auger to directly lift the milled grain to mash tun

2. 1000L Brewhouse Unit

Mash tun, Lauter tun, Boiling Kettle, Whirlpool tun in various combination

Hot water tank and cold water tank for optional in special combinations

Stainless steel are popular because of easy maintenance and clean, copper cladding for optional

Two stages or single stage heat exchanger for wort cooling

Completely stainless steel integrated work platform

Sanitary and efficiency wort pump

All pipings and fittings

3. 1000L or 2000L Fermentation Unit

Standard stainless steel conical cylindrical fermentation tanks

Single size or double size as brewhouse is common used in microbreweries

Tanks quantity is exactly calculated by fermentation cycle for various beers

All manhole, valves, pressure gauges, fittings etc are included

4. Beer Filter Unit (optional)

Craft beer is no need filtration which will keg filling for quickly consumption

Plate-Frame or Candle type DE (diatomite earth) filter is used for clarify the beer

5. 1000L or 2000L Bright Beer Tank Unit

Standard stainless steel bright tanks for beer maturation, conditioning, service, carbonation

Single size or double size as fermenter is common used in restaurant or bar

Tanks quantity is exactly calculated for various beers and the function

All manhole, valves, stone, gauges, fittings etc are included

6. Cooling Unit

Insulated glycol water tank with or without copper coil for glycol liquid holding and mixing

Efficiency chillers or refrigerators with fryon to supply cooling energy

Sanitary centrifugal pump for glycol water recycle among tanks and heat exchanger

All pipes, fitting, insulation materials are included

7. Controlling Unit

Electrical controlling cabinet with temperature, on-off controlling for brewhouse

Electrical controlling cabinet with temperature, on-off controlling for cooling parts

Temperature controller, solenoid valves etc are included

PLC with touch screen panel for special request

8. Beer Dispense

Keg filling and rinsing machine

Semi-auto bottling machine with rinsing, filling, capping, labeling etc

Flash pasteurizer or tunnel pasteurizer is available

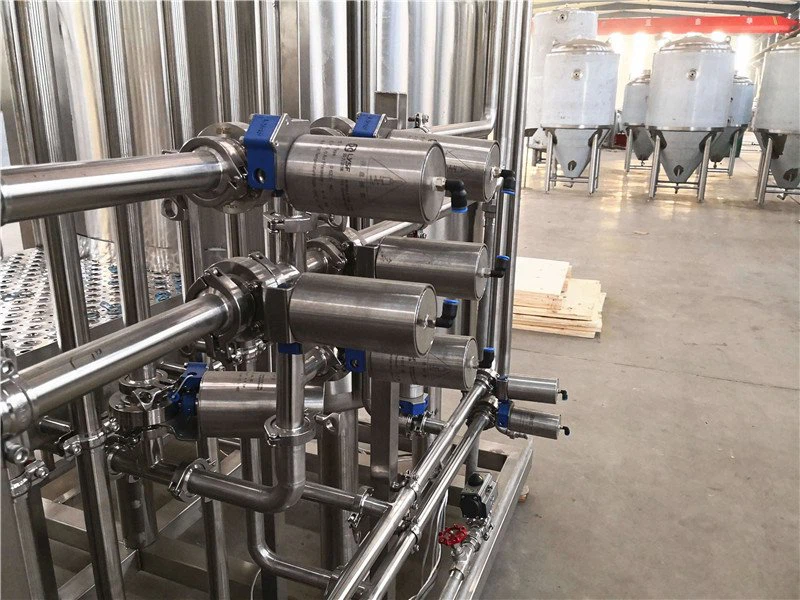

Full automatic control system is also available, by the pneumatic valves and Siemens PLC program, the system will highly labor saved.

Details of the System

All tanks are 100% TIG welded, all jackets welding are all full welded and 48 hours pressure testing, ensure no-leaking and long life.

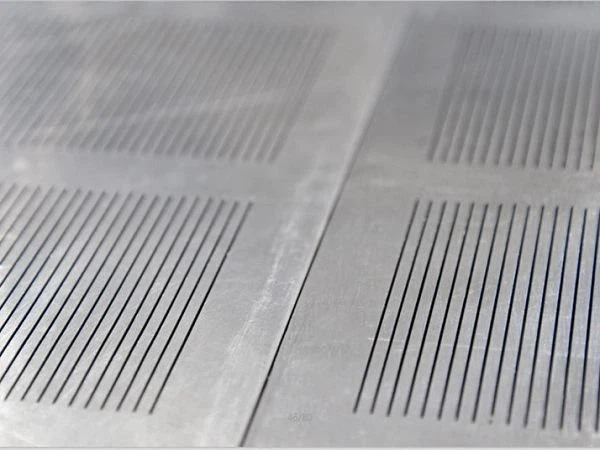

Lauter tun False Bottom

Electrical Element

Wort Collecting & Cleaning Pipe

Agitator

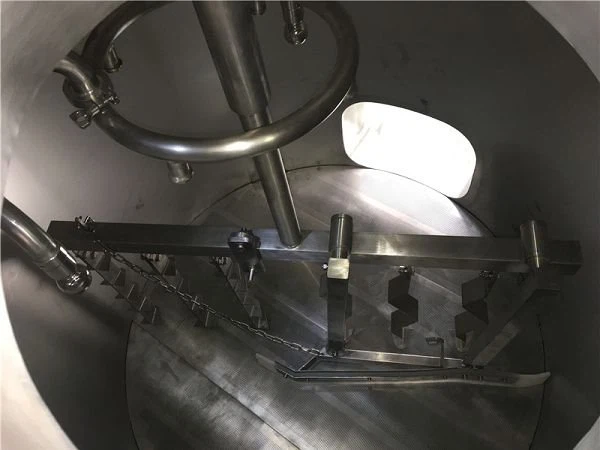

Rake System

Steam Jacket

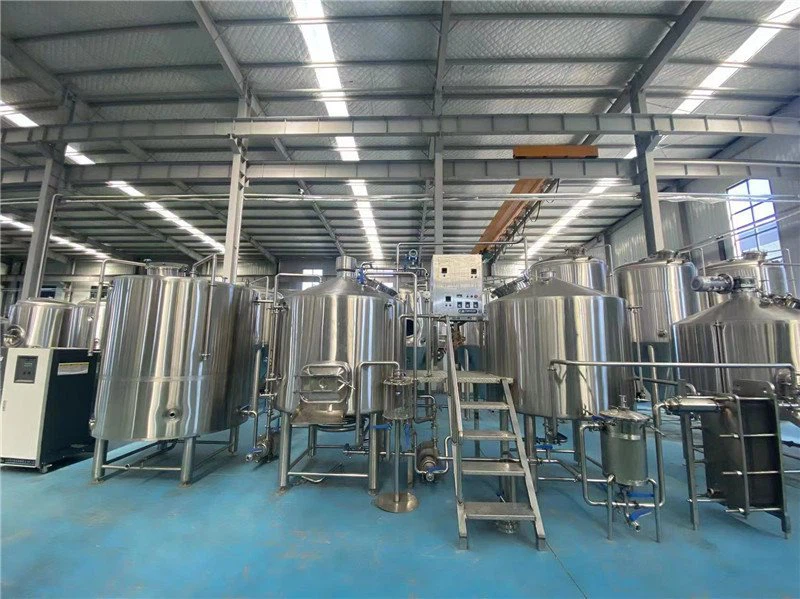

1000L Brewery System in Canada
