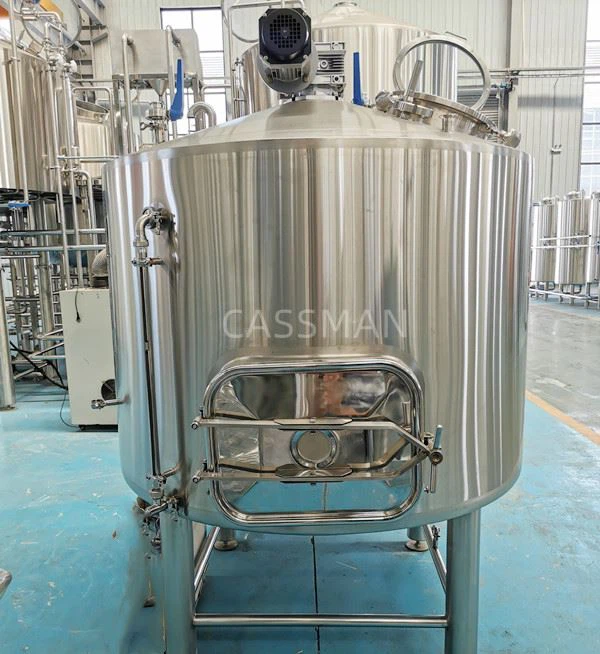

Single Vessel Brewing

Equipment Introduction

For the entire beer brewing system, the Single vessel brewing and the split brewhouse are mainly the difference between the saccharification system. The Single vessel brewing, as the name suggests, is to use one tank for the mash, lauter, boiling, and whirlpool four brewing process steps of the entire mash system. Split brewhouse, mash, lauter, cooling and fermentation in the brewing process are independent equipment, generally divided into two vessels, three vessels, and four vessels, etc. And the individuality of the equipment can also be customized according to the different needs of customers.

Single vessel brewing is separated into two parts, upper and lower parts. The upper part is for Lauter and whirlpool. And the lower part is for Mash and Kettle. Single vessel brewing takes very less room and space. Take a 200L as an example, it takes about 1m2. It is very easy to install, operate and do cleaning work by CIP. Thus, the price is very competitive. Normally, 100L, 200L, 300L, 500L are available. They can be matched with different size fermenters.

Specifications

• SUS 304 or red copper material, insulated tank-80mm.

• Gross capacity 100L, 200L, 300L,500L, etc.

• 100% TIG welding with pure argon gas.

• Top manhole for observe, dosing, mixing, etc.

• Side manhole for spent grain removal

• Wedge filter in lauter tun

• Electric heating: 14Kw, 27Kw, 36Kw, 72Kw, etc.

• Red copper or stainless steel coil in kettle for heating or cooling

• Stainless steel 304 butterfly valves.(DIN, Tri-clamp), all fittings

• 4 Heavy duty adjustable legs

Package of Single Vessel Brewing

Attached Small Size Fermenters

CASSMAN SERVICE

Warranty:

Equipment warranty includes tank warranty, electric parts warranty, auxiliary parts warranty, etc.

1, Cassman provides 3-5 years warranty for the main tank, 1 year warranty for electrical components and auxiliary parts, etc., and lifetime after-sales service.

2, In order to ensure the normal operation of the brewery, we can provide a separate set of spare parts according to the customer's request, customers can replace parts in case of abrasion damage.

Maintenance:

During operation, daily maintenance for the equipment is important. Cassman will provide maintenance guide., if need, we can send engineer to customer's site for repair and maintenance.
